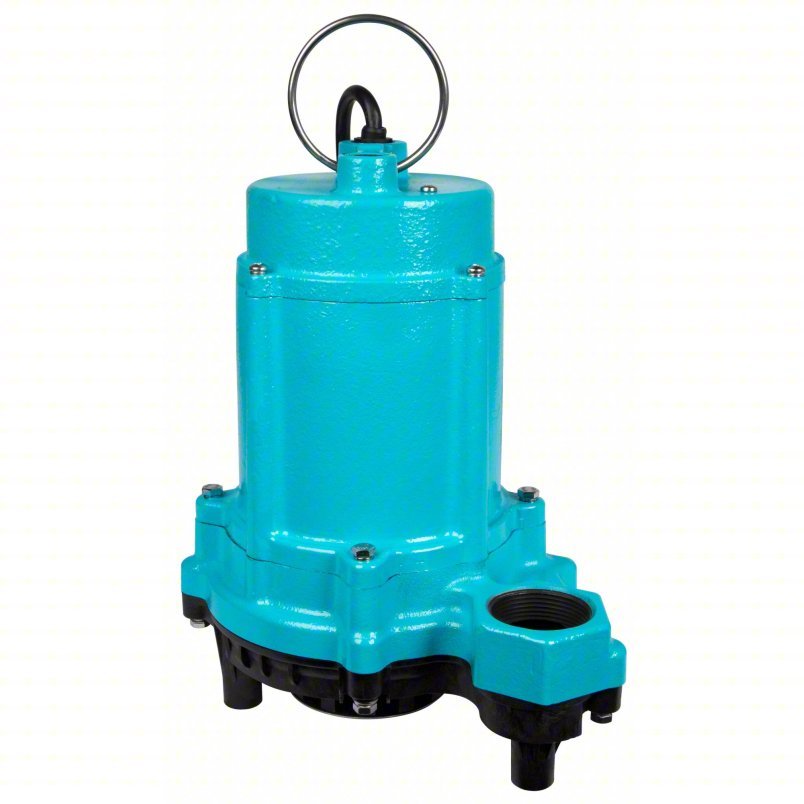

Franklin Electric Little Giant 6EC-CIM 1/3HP 506802

The Franklin Electric Little Giant 6EC-CIM (model 506802) is a 1/3 HP cast iron effluent pump built for moving pre-treated wastewater from septic tanks to drain fields or secondary treatment systems. A reliable workhorse for residential septic applications. The 6EC series consumes only 5 amps while producing 53 GPM @ 5 ft of head and reaching a maximum shutoff of 28 ft.

Specifications:

• Model: 506802 / 6EC-CIM
• HP: 1/3
• Brand: Franklin Electric / Little Giant
• Application: Septic effluent, wastewater transfer
• Construction: Cast iron
• 1-1/2" FNPT Discharge
• Handles up to 1/2" solids
• 20 ft power cable
• 115V motor
• Multiple switch options for automatic operation

What is an effluent pump used for? Effluent pumps are designed to handle the liquid that exits a septic tank after solids have settled. Unlike sewage pumps, they are not meant to handle raw sewage or large solids. The Little Giant 6EC-CIM is a common replacement pump for residential septic systems with a pump chamber or dosing tank.
